Defi Link Advance
Control Unit

Click here for Advance BF gauges 52mm & 60mm
that you can connect to this Defi Advance Control Unit
Click here to compare BF vs CR gauges

defi link advance control unit

Ring to order or check availability
01635 35355

All prices Exclude VAT @ 20%
 Delivery extra.

Fitting Servie Available

Image (for display purposes only)

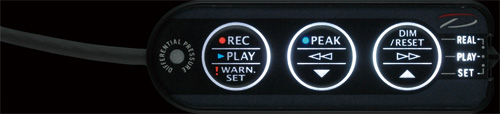

Defi Link Advance Control Unit

The Defi-Link ADVANCE system allows gauges and displays to be attached to the ADVANCE control unit with a single "DAISY CHAIN" wiring system.

The system is also designed to allow all sensors to be attached to the ADVANCE control unit, so that gauges and displays can be mounted separately without the need for multiple tubing or wiring to each gauge.

Defi-Link ADVANCE SYSTEM is the next generation system that adopted the interactive communication.
The product of Defi-Link ADVANCE SYSTEM cannot be connected with the earlier product of Defi-Link System..

Defi ECU Interactive communication advanced system is implemented.
Defi Control Unit ADVANCE Control Unit can control up to 7 Defi-Link Meter ADVANCE CRs and ADVANCE BFs all in at a time. (Ex. 4 ADVANCE CRs and 3 ADVANCE BFs)
Defi CU Gauges can be controlled from distance with the included switch unit.

Defit Advance Unit

Defi Advance Controller Opening and closing modes can be selected from 2 variations.
Defi Controller The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
Defi Advance Control Unit Power Indicator of ADVANCE Control Unit assures correct wiring.

Defit Advance Unit
Defi Advance Control Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
Defi Advance Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
Defi With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.





The Defi Advance Controller Unit is not compatible with the earlier Defi Link BF Gauges. The Defi Advance Controller is only compatible with the Defi Advance BF and Defi Advance CR Gauges.




Price £ 126

All prices Exclude VAT @ 20%
 Delivery extra.

These gauges are a special order from Japan and a minimum
additional £75 carriage will be charged per order.
