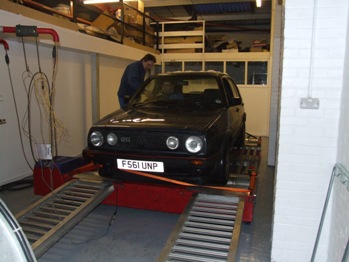

Dyno Dynamics 4WD Rolling Road
Pictures are Clickable
|
Manufacturer
Dyno Dynamics
Model
450 DS 4WD Rolling Road
Specification
2 wheel and 4 wheel drive chassis dyno test cell has the potential to run to 200mph with 1200 wheel horsepower handling (but not 3 wheel but who wants to map a Robin Reliant anyway?).
Cooling
Huge cooling fan capable of moving 33000 cubic feet of air per minute.
Measures:
Power and torque at wheels, power and torque at flywheel, air fuel ratio, air intake temperature, ambient temperature, barometric pressure, boost, road speed and more.
Why?
We invested in our 4WD rolling road so that we could create the best possible performance upgrades safely and legally and have the ability to live remap ECU's in house. The Dyno has the ability to hold load which allows us to precision tune an engine. The rolling road also serves as an excellent diagnostic and data logging tool.
This is a trusted dyno dynamics quality dyno. The Dyno Dynamics dyno 4WD rolling road is regarded as being one of the most accurate chassis dyno's in the world. They have now become the industry standard. An independant testing of rolling roads by Performance Tuner Magazine put the Dyno Dynamics Rolling Road as the most accurate.
1) Accurate, repeatable wheel horsepower figures
2) Eliminate tyre slip on the rollers with the unique roller and strap-down design – no more sitting in the boot of the car to keep it on the dyno!
3) Safe, controlled tuning environment
4) Capable of measuring up to 1200 wheel horsepower
5) 2 or 4wd, manual or auto capabilities
6) ShootOut mode allows for accurate results that are comparable worldwide as it eliminates any possibility of manipulating horsepower figures
ShootOut mode was developed by Dyno Dynamics primarily to eliminate "Operator Technique" and as a tool for measuring horsepower accurately and CONSISTENTLY for ALL Dyno Dynamics dynos. No other dyno allows for such worldwide standardised comparison. When you get your car dyno-ed in ShootOut mode, you can rest assured that the horsepower figure is an accurate representation of what your car is actually pushing out at that time (so no more wondering whether the results have been "fixed").
In addition, the unique knurled design of the rollers and the tie-down system utilised on Dyno Dynamics rolling roads ensure that there is hardly any tyre slip on the rollers. Tyre slip is not only dangerous to the engine and transmission, but the power readings become inconsistent. Excessive tie down on some rolling roads can also cause tyre deformation and inaccurate readings. With Dyno Dynamics, this problem is eliminated.
Prices
Rolling Road Power & Diagnostic Runs
Our rolling road is just perfect as an advanced diagnostics tool and data such as Power, Torque, Boost Pressure, Air Fuel Ratio etc. can all be logged and at the end you'll receive print out showing all these values. The charge for this is £50 inc VAT. Ring for block booking/group buy.
Remapping Sessions and discounts.
Remapping 4WD rolling road sessions can be booked in conjunction with the regular visits by a remapper. The charge for a rolling road remapping session is £88 inc VAT per hour (excluding the remapping, see the remapping page for charges). We provide a fully trained Dyno operator and access to the machine, including sensors and data software. If you book a rolling road remapping session and remapping with us on a pre announced mapping day then you receive a 10% discount on the 4WD rolling road session. If you have a already booked with your own mapper then why not meet him at our rolling road?
Mappers, ring for hire prices and block booking.
Dyno Dynamics in action:
Some bigger HP cars
1895 HP at the rear wheels - the worlds most powerful street legal car
1731 HP at the wheels
|
Specifications |
| Dyno Dynamics - AWD450DS Chassis Dynamometer |
Applicable Vehicles |
• Rear wheel drive
• Front wheel drive
• 4WD/AWD cars, recreational vehicles (with selectable single axle drive)
• 2WD/4WD race cars
• Sport utility vehicles
• Light commercial vehicles
|
Transmission Types |
• Front wheel drive
• Rear wheel drive
• All wheel drive
• Locked Front:Rear AWD
• Full time AWD
• Viscous coupled AWD
• Intelligent european AWD (Volvo dog clutch)
• Variable ratio Front:rear |
Vehicle / axle weights |
| Maximum vehicle weight |
4,500 kg (9,900 lb) |
| Maximum axle weight (per axle) |
2,250 kg (4,450 lb) |
Vehicle wheelbase
(Alternative wheelbase dimensions available on request. Refer factory) |
| Minimum wheelbase |
2,250 mm (89") |
| Maximum wheelbase |
3, 500 mm (138") |
Power, Tractive Effort, Torque and Speed (Note 3) |
| Front Axle |
|
| Maximum power graphing |
675 kW (900 HP) |
| Max. tractive effort graphing |
20,700 N (4,650 lb) |
| Max. roller torque graphing |
2,250 Nm (1,650 ft lb) |
| Max. axle torque graphing (Note 1) |
6,150 Nm (4,500 ft lb) |
| Max. engine torque graphing (Note 2) |
2,100 Nm (1,500 ft lb) |
| Max. power steady speed |
450 KW (600 HP) |
| Max. tractive effort steady speed |
13,800 N (3,100 lb) |
| Max. roller torque steady speed |
1,500 Nm (1,100 ft lb) |
| Max. axle torque steady speed (Note 1) |
4,100 Nm (3,000 ft lb) |
| Max. engine torque steady speed (Note 2) |
1,400 Nm (1,000 ft lb) |
| Max road speed |
200 km/h (120 MPH) - 250 km/h (150MPH)* |
| Rear Axle |
Standard |
Rear Aux retarder/PAU* |
| Maximum power graphing |
675 kW (900 HP) |
1,350 kW (1,800 HP) |
| Max. tractive effort graphing |
20,700 N (4,650 lb) |
41,400 N (9,300 lb) |
| Max. roller torque graphing |
2,250 Nm (1,650 ft lb) |
4,500 Nm (3,300 ft lb) |
| Max. axle torque graphing (Note 1) |
6,150 Nm (4,500 ft lb) |
12,300 Nm (9,000 ft lb) |
| Max. engine torque graphing (Note 2) |
2,100 Nm (1,500 ft lb) |
4,200 Nm (3,000 ft lb) |
| Max. power steady speed |
450 KW (600 HP) |
900 kW (1,200 HP) |
| Max. tractive effort steady speed |
13,800 N (3,100 lb) |
27,600 N (6,200 lb) |
| Max. roller torque steady speed |
1,500 Nm (1,100 ft lb) |
3,000 Nm (2,200 ft lb) |
| Max. axle torque steady speed (Note 1) |
4,100 Nm (3,000 ft lb) |
8,200 Nm (6,000 ft lb) |
| Max. engine torque steady speed (Note 2) |
1,400 Nm (1,000 ft lb) |
2,800 Nm (2000 ft lb) |
| Max road speed |
200 km/h (120 MPH) - 250 km/h (150MPH)* |
| Both Axles |
Standard |
Rear Aux retarder/PAU* |
| Maximum power graphing |
2,000 kw (2,700 HP) |
2,000 kW (2,700 HP) |
| Max. tractive effort graphing |
41,400 N (9,300 lb) |
62,100 N (13,950 lb) |
| Max. roller torque graphing |
4,500 Nm (3,300 ft lb) |
6,750 Nm (4,950 ft lb) |
| Max. axle torque graphing (Note 1) |
12,300 Nm (9,000 ft lb) |
18,450 Nm (13,500 ft lb) |
| Max. engine torque graphing (Note 2) |
4,200 Nm (3,000 ft lb) |
6,300 Nm (4,500 ft lb) |
| Max. power steady speed |
900 kW (1,200 HP) |
1,350 kW (1,800 HP) |
| Max. tractive effort steady speed |
27,600 N (6,200 lb) |
41,400 N (9,300 lb) |
| Max. roller torque steady speed |
3,000 Nm (2,200 ft lb) |
4,500 Nm (3,300 ft lb) |
Max. axle torque steady speed
(Note 1) |
8,200 Nm (6,000 ft lb) |
12,300 Nm (9,000 ft lb) |
| Max. engine torque steady speed (Note 2) |
2,800 Nm (2,000 ft lb) |
4,200 Nm (3000 ft lb) |
| Max road speed |
200 km/h (120 MPH) - 250 km/h (150MPH)* |
Roller Chassis |
| Retardation and Loading |
|
| Retarder/PAU type |
Magnetic eddy current retarder/PAU - Aux retarder/PAU |
| Load/speed availability |
High load available at all speeds |
| Cooling fins per retarder/PAU |
84 |
| Rollers |
|
| Drive roller traction surface |
High grip Dyno Dynamics unique square cut knurl |
| Front & rear rollers linked |
No (fully independent). |
| Roller Diameter |
217 mm (8.5") drive rollers |
| Roller length |
855 mm (33") |
| Track Maximum (Note 4). |
2180 mm (86") |
| Track Minimum (Note 5). |
465 mm (18") |
| Roller rotation |
Bi-directional |
| Wheelbase adjustment |
|
| Remote adjustment |
From command module |
| Wheelbase lock |
Self locking |
| Electronic Adjustment |
Front:Rear |
| Exit Brake |
Electromagnetic roller exit brake |
| Bearings |
Standard |
Aux Retarder/PAU* |
| 10 |
12 |
| Balance |
Rollers and flywheel dynamically balanced |
| Traction |
Roller surface Dyno Dynamics unique square cut knurl
Low tyre temperature operation
Heavy duty traction control system* |
| Tie down points per bed |
8 |
| Traction control mount points |
4 |
| Axle download |
User adjustable (with straps or optional airbag) |
| Inertias (Per axle) |
|
| Roller inertia and retarder (combined) |
Standard |
Aux Retarder/PAU* |
| 2.590 kgm2 (61.5 lbft2) |
3.566 kgm2 (84.6 lbft2) |
| Bed equivalent inertia (typical) |
219 kg (483 lb) |
302 kg (665 lb) |
Note 1: Assumes 600 mm (23.5") tyre diameter
Note 2: Assumes max torque occurs @ 3,500 RPM
Note 3: Assumes sufficient traction
Note 4: Distance between outer roller ends
Note 5: Distance between inner roller ends
|
|
|

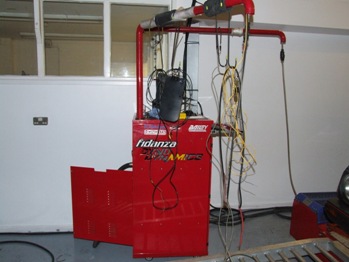

Dyno Dynamics Phase 3 computerised control system |
• AWD/4WD control system, electronics and software
• AWD/4WD Smart system
• Computer*
• Wireless (cordless) keyboard
• Colour ink jet printer
• Hand held Command Module
• Heavy duty steel cabinet
• Automatic fan control
• Large digit and bar graph displays
• Power, tractive effort, speed,Air:Fuel/lambda etc.
• Vacuum/boost display
• Constant speed mode (Dial in the speed you want)
• Constant load mode (Dial in the load you want)
• Ramp mode (Dial in the acceleration you want) |
|
